JHY Cable Copper Conductor Shielded Cat6 FTP Ethernet Network Cable
Production Description:
1. Production Application
A 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
3. Use range
This product supports a variety of wiring structures and a variety of transmission media, suitable for high-speed, large-capacity and multimedia integrated business data communication network intelligent building installation engineering; network information engineering installation wiring, home network wiring.
4. Features
Characteristic impedance: 100±15Ω
Frequency range: 100-250MHz
Attenuation: 1MHz: ≤ -2 dB / 100M, 100MHz: ≤-22 dB/100M
- High purity oxygen free copper
- Imported ultra low dielectric constant polyethylene insulation
- Flame retardant, environmentally friendly, corrosion resistant, oil resistant PVC sheath
- Precision jet printer with precise length
5. Tabular data
Construction
 | 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) |
| 2. Insulation material: | HDPE (High density Polyethylene) |
| 3. Outer sheath material: | PVC |
| 4. Drain Wire: | Tinned Copper |
| 5. Screening: | Aluminum Foil Overall Screening |
| 6. rip cord: | Nylon |
| 7.Separator: | cross filler
|
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 16.3 kg | 305 m/ roll pull box | 42 x 24 x 42 | 800 box
|

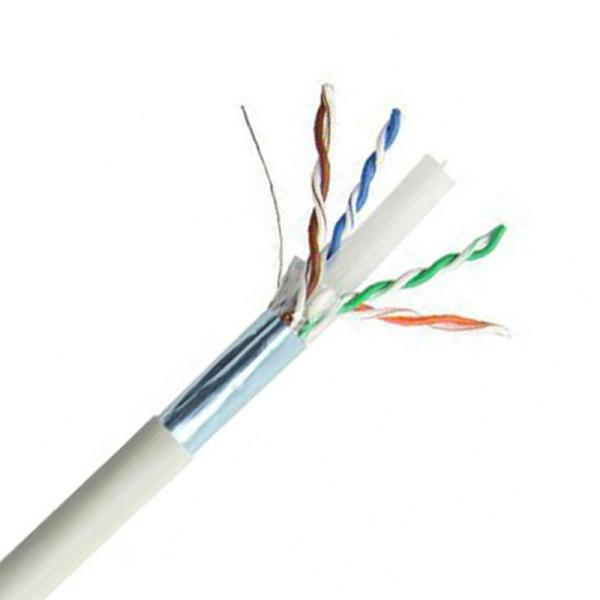

6. Product Image
